4-Engine choice

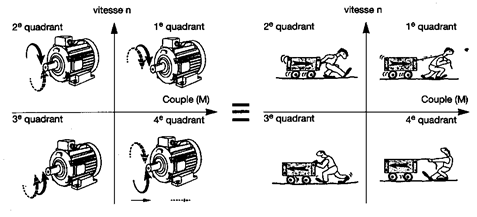

4. Operating quadrants of a machine

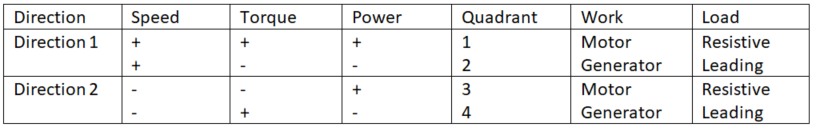

The working Quadrant are :

  • Motor : Q1 and Q3 (the engin provide a mechanic power)

  • Generator or Break; Q2 and Q4 (The engine is absorbing a mechanic power)
