The limitation

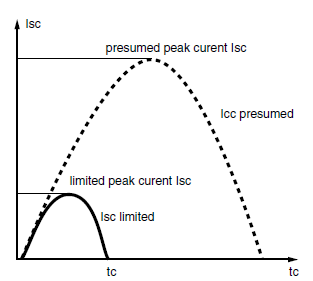

The limitation capacity of a circuit-breaker expresses its varying capacity to only let pass through on a short-circuit a current less than the prospective fault current.

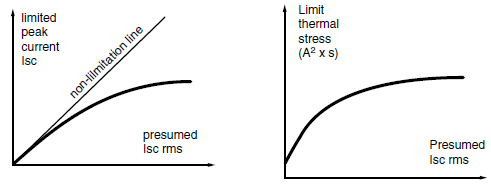

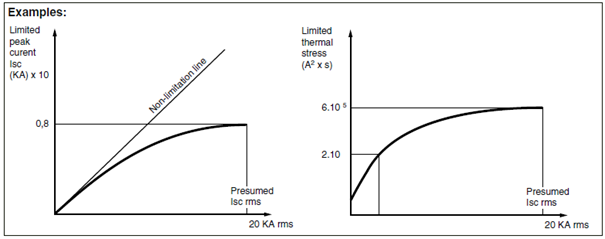

This characteristic is expressed by the limitation curves giving:
limited peak current Ic according to rms strength of the prospective short-circuit current Ip
limited thermal stress (of cable) according to Ip (see curves of the Distribution Guide).
