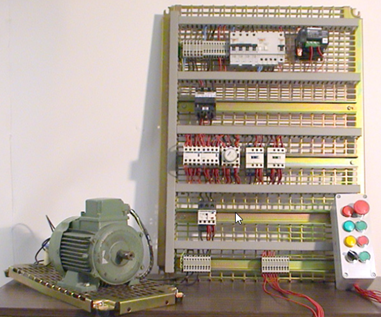

1. Hardware location
Advice : 1.1. Space between devices
Wiring by using raceway: leave 4 to 6 cm between the devices and the raceway.
Wiring in strand: Leave 4 to 6 cm between devices
Advice : 1.2. Common functions
it is recommended to place side to side the equipment with common function e.g. contactor forward / reverse, contactor going up / down...
The rating plate of the contactor coil should be accessible for reading.
