7-Variable Speed Driver

2. Variation or regulation

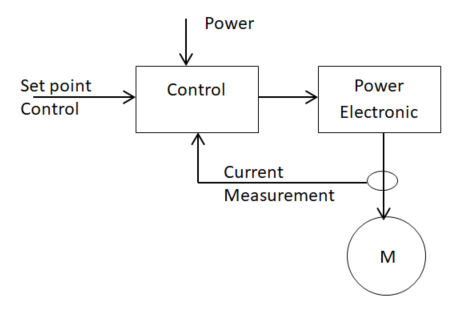

Driver

Allows variable speed without guaranteeing stability over time;

During operation elements may vary:

  • The resistant torque;

  • The network voltage;

  • The temperature;

And cause a change in the actual speed compared to the setpoint.

The speed variation is poorly adapted to low speeds.

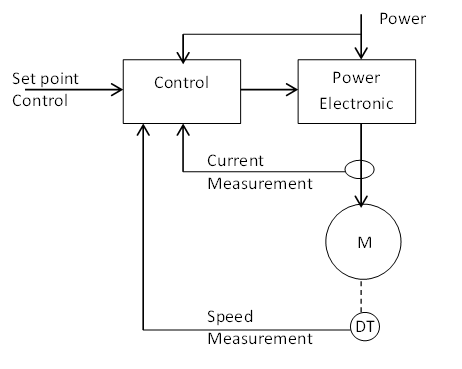

2.2. Controller

  • Maintains the actual speed in accordance with a very small deviation from the set speed despite disturbances;

  • To do this, the controller must be constantly informed of the actual speed of the motor via a speed sensor..
